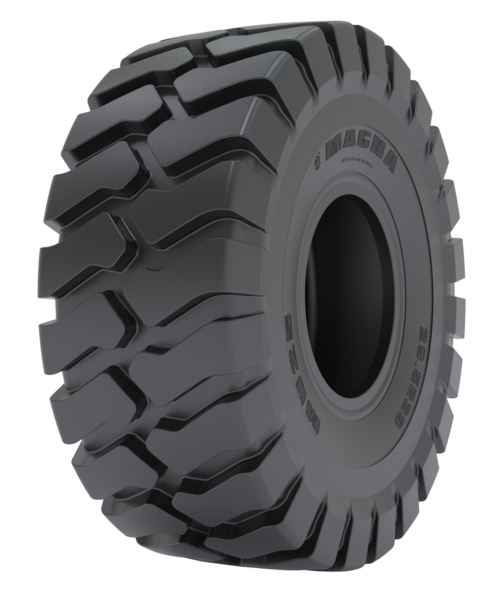

Magna MU25 underground mining tire for Wheel Loaders, Underground Loaders, and Underground Dump Trucks, offering superior durability, traction, and cut resistance.
MU25 Tire
TRA Code: E4/L4
TRA Type: Radial

Technical Data - MU25

Download Data Sheet
  • Size
    29.5R29 35/65R33
  • TRA Code i

    The TRA code (Tire and Rim Association) specifies the tire’s application. For example, E3/L3indicates a tire designed for earthmoving machines, offering excellent traction and stability on loose surfaces.

    E4/L4 E4/L4
  • T.D. (32") i

    Tread Depth measures the tire’s tread height in millimetres. A deeper tread improves wear resistance, durability, and performance on rough terrain.

    82 78
  • Rim i

    The rim size specifies the recommended dimensions of the wheel for optimal tire fit and performance. It includes width and profile.

    25.00/3.5 28.00/3.5
  • L/S Index i

    The Load/Speed Index defines the tire’s maximum load and speed capacity. For instance, 167Bmeans the tire can support 5,450 kg at 50 km/h.

    219A8/225A2 225A8/229A2
  • Star Rating i

    The star rating indicates the tire’s performance in demanding conditions. A higher number of stars reflects superior durability, traction, and reliability.

    / /
  • Size 29.5R29

    i TRA Code

    The TRA code (Tire and Rim Association) specifies the tire’s application. For example, E3/L3indicates a tire designed for earthmoving machines, offering excellent traction and stability on loose surfaces.

    E4/L4

    i T.D. (32")

    Tread Depth measures the tire’s tread height in millimetres. A deeper tread improves wear resistance, durability, and performance on rough terrain.

    82

    i Rim

    The rim size specifies the recommended dimensions of the wheel for optimal tire fit and performance. It includes width and profile.

    25.00/3.5

    i L/S Index

    The Load/Speed Index defines the tire’s maximum load and speed capacity. For instance, 167Bmeans the tire can support 5,450 kg at 50 km/h.

    219A8/225A2

    i Star Rating

    The star rating indicates the tire’s performance in demanding conditions. A higher number of stars reflects superior durability, traction, and reliability.

    /
  • Size 35/65R33

    i TRA Code

    The TRA code (Tire and Rim Association) specifies the tire’s application. For example, E3/L3indicates a tire designed for earthmoving machines, offering excellent traction and stability on loose surfaces.

    E4/L4

    i T.D. (32")

    Tread Depth measures the tire’s tread height in millimetres. A deeper tread improves wear resistance, durability, and performance on rough terrain.

    78

    i Rim

    The rim size specifies the recommended dimensions of the wheel for optimal tire fit and performance. It includes width and profile.

    28.00/3.5

    i L/S Index

    The Load/Speed Index defines the tire’s maximum load and speed capacity. For instance, 167Bmeans the tire can support 5,450 kg at 50 km/h.

    225A8/229A2

    i Star Rating

    The star rating indicates the tire’s performance in demanding conditions. A higher number of stars reflects superior durability, traction, and reliability.

    /

Description

The Magna MU25 tire, with its robust E4/L4 tread, is meticulously engineered for loaders, dump trucks, and graders operating in rigorous heavy-duty settings, such as underground mines. Its design promotes an even contact with the ground, significantly reducing vibration and thereby enhancing the comfort of the operator.

Equipped with large tread blocks and an aggressive, open layout, the Magna MU25 ensures superior traction alongside an impressive resistance to cuts and damage. Furthermore, its directional-block pattern and square shoulders contribute to its remarkable durability.

Always consult with your sales manager to verify the availability of specific tire sizes in your area.
