MA05 Tire
TRA Code: L5
TRA Type: Radial

Technical Data - MA05

Download Data Sheet
  • Size
    17.5R25 26.5R25 29.5R25
  • TRA Code i

    The TRA code (Tire and Rim Association) specifies the tire’s application. For example, E3/L3indicates a tire designed for earthmoving machines, offering excellent traction and stability on loose surfaces.

    L5 L5 L5
  • T.D. (32") i

    Tread Depth measures the tire’s tread height in millimetres. A deeper tread improves wear resistance, durability, and performance on rough terrain.

    82 115 127
  • Rim i

    The rim size specifies the recommended dimensions of the wheel for optimal tire fit and performance. It includes width and profile.

    14.00/1.5 22.00/3.0 25.00/3.5
  • L/S Index i

    The Load/Speed Index defines the tire’s maximum load and speed capacity. For instance, 167Bmeans the tire can support 5,450 kg at 50 km/h.

    182A2 209A2 216A2
  • Star Rating i

    The star rating indicates the tire’s performance in demanding conditions. A higher number of stars reflects superior durability, traction, and reliability.

  • Size 17.5R25

    i TRA Code

    The TRA code (Tire and Rim Association) specifies the tire’s application. For example, E3/L3indicates a tire designed for earthmoving machines, offering excellent traction and stability on loose surfaces.

    L5

    i T.D. (32")

    Tread Depth measures the tire’s tread height in millimetres. A deeper tread improves wear resistance, durability, and performance on rough terrain.

    82

    i Rim

    The rim size specifies the recommended dimensions of the wheel for optimal tire fit and performance. It includes width and profile.

    14.00/1.5

    i L/S Index

    The Load/Speed Index defines the tire’s maximum load and speed capacity. For instance, 167Bmeans the tire can support 5,450 kg at 50 km/h.

    182A2

    i Star Rating

    The star rating indicates the tire’s performance in demanding conditions. A higher number of stars reflects superior durability, traction, and reliability.

  • Size 26.5R25

    i TRA Code

    The TRA code (Tire and Rim Association) specifies the tire’s application. For example, E3/L3indicates a tire designed for earthmoving machines, offering excellent traction and stability on loose surfaces.

    L5

    i T.D. (32")

    Tread Depth measures the tire’s tread height in millimetres. A deeper tread improves wear resistance, durability, and performance on rough terrain.

    115

    i Rim

    The rim size specifies the recommended dimensions of the wheel for optimal tire fit and performance. It includes width and profile.

    22.00/3.0

    i L/S Index

    The Load/Speed Index defines the tire’s maximum load and speed capacity. For instance, 167Bmeans the tire can support 5,450 kg at 50 km/h.

    209A2

    i Star Rating

    The star rating indicates the tire’s performance in demanding conditions. A higher number of stars reflects superior durability, traction, and reliability.

  • Size 29.5R25

    i TRA Code

    The TRA code (Tire and Rim Association) specifies the tire’s application. For example, E3/L3indicates a tire designed for earthmoving machines, offering excellent traction and stability on loose surfaces.

    L5

    i T.D. (32")

    Tread Depth measures the tire’s tread height in millimetres. A deeper tread improves wear resistance, durability, and performance on rough terrain.

    127

    i Rim

    The rim size specifies the recommended dimensions of the wheel for optimal tire fit and performance. It includes width and profile.

    25.00/3.5

    i L/S Index

    The Load/Speed Index defines the tire’s maximum load and speed capacity. For instance, 167Bmeans the tire can support 5,450 kg at 50 km/h.

    216A2

    i Star Rating

    The star rating indicates the tire’s performance in demanding conditions. A higher number of stars reflects superior durability, traction, and reliability.

Description

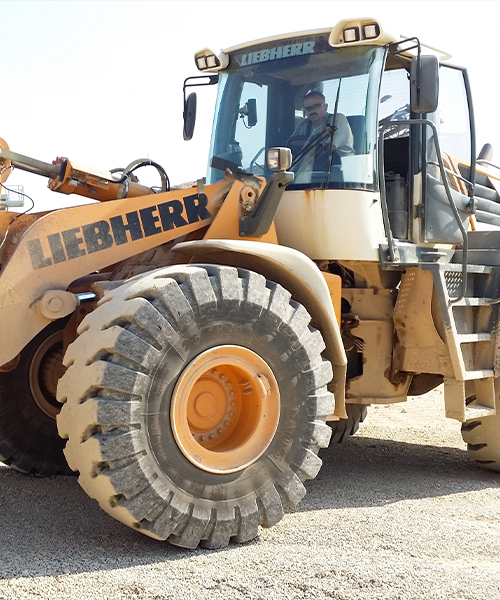

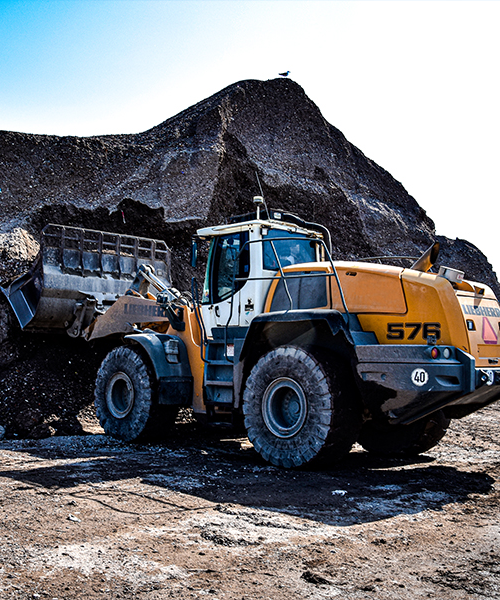

The Magna MA05 tire is classified as an L5 rock pattern tire, crafted to withstand the most challenging environments. Designed for use in surface mining, quarries, scrap yards, and underground mine transport, it surpasses other tires in durability and reliability, offering a perfect mix of adhesive strength and traction for such demanding conditions.

This tire features a reinforced crown and sidewall to resist damage and prolong tire life under severe usage. The Magna MA05’s specially designed casing, reinforced with multiple steel belts, enhances puncture resistance and minimizes heat build-up, while ensuring optimal load handling and comfort for the operator.

Always consult with your sales manager to verify the availability of specific tire sizes in your area.
